Extrusion Tooling

12081411031003

12081411031545

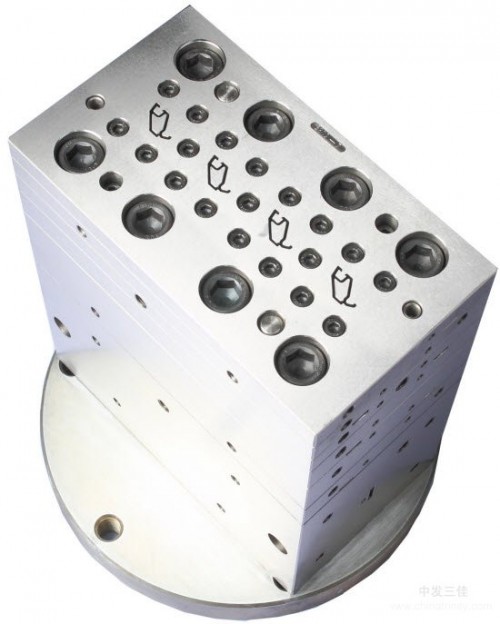

A high-speed multi-cavity extrusion die.

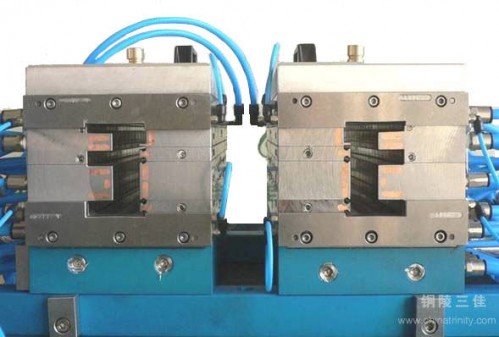

double strand

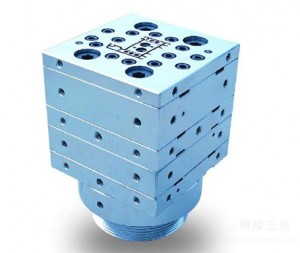

A high-speed dual-chamber die main profile extrusion dies
(Stereotypes section)

Cable-duct extrusion tooling.

Trough type extrusion die

Extrusion Die

Die

u     Systematic flowing channel design based on theoretical calculation and finite element analysis

u     Multi-cavity with material supplied to each cavity respectively; smooth transition of flowing channel

u     Integrated  mandrel structure

u     Fast precise positioning system

u     High precision assembly guiding system

 Calibrator

Calibrator

u     Perfect combination between reasonable distribution of vacuum and high efficient and even cooling system

u     Gradual forming dimension

u     Independent circulating cooling systems,which can be adjusted respectively

u     Quick-change, concentrate water supply, convenient operation

u     Precise positioning system is applied

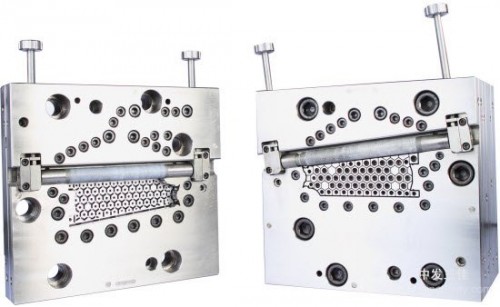

Complex Extrusion Tooling

The complex extrusion technique integrated surface co-extrusion, embossment and honey-comb into one tooloing, is an evidence of ZonfaTrinity powerful technology capability.

Composite die
