TRINITY Equipments List



High Speed Milling Machine (RODER, Germany) 2
Wire cutting CNC Machine (CHARMILLES, Switzerland) 44
Wire cutting CNC Machine (SODICK, Japan) 36
EDM Centre (CHARMILLES, Switzerland) 60
CNC Manufacture Centre (BRIDGEPORT, England) 10
Manufacture Centre (DEC MAHO, Germany) 4
Vacuum harden equipment (Japan) 10
Profile projector equipment (Mitutoyo, Japan) 1
3D inspectors from (Mitutoyo, Japan) 2
Cavity abrasive machines (Extrude Hone America) 3
Extruders for Tuning (CET,KMD,THEYSOHN, WEBER) 10



Manufacture Workshop

Manufacture

By professional heat-treatment process, Trinity can guarantee the hardness of tooling steel reach HRC28~HRC32.

Treatment



Top Classic Tuning Work Shop

Tuning workshop

Tongling Tuning Center has 10 lines including extruder from the Weber, Cincinnati, Kraussmaffei and Theysohn.  By these advanced machinery, Trinity can imitate actual production condition at final customers’ side. And customer can begin production formally by few test under condition that the tooling is pre-tuned before delivery in Trinity.



Quality Control Service

Mitutoyo control



The Most Advanced Projector Inspection Equipment

Inspection equipment Mitutoyo is generally used to check tooling plate, especially for checking the flow chamber’s dimension after assembly, which will find precisely and inspector any different between actual dimension and designed data.



Pre-testing Inspection

projector projector1 projector2





Perfect Service System

service

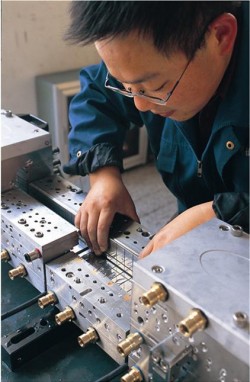

Pre-testing Process in Tongling

install

Experienced technicians and designers, together with advanced extrusion lines including Weber, Cincinnati, Kraussmaffei, Theysohn etc., make Trinity Tooling of “0” blemish before delivery, which will save not only die-tuning time at site, but also cost for our customers.



Fine Tuning at Site

tuning fin

More than 50 tuning technicians with advanced technology and rich experience can complete fine tuning and tooling modification at customer side.
